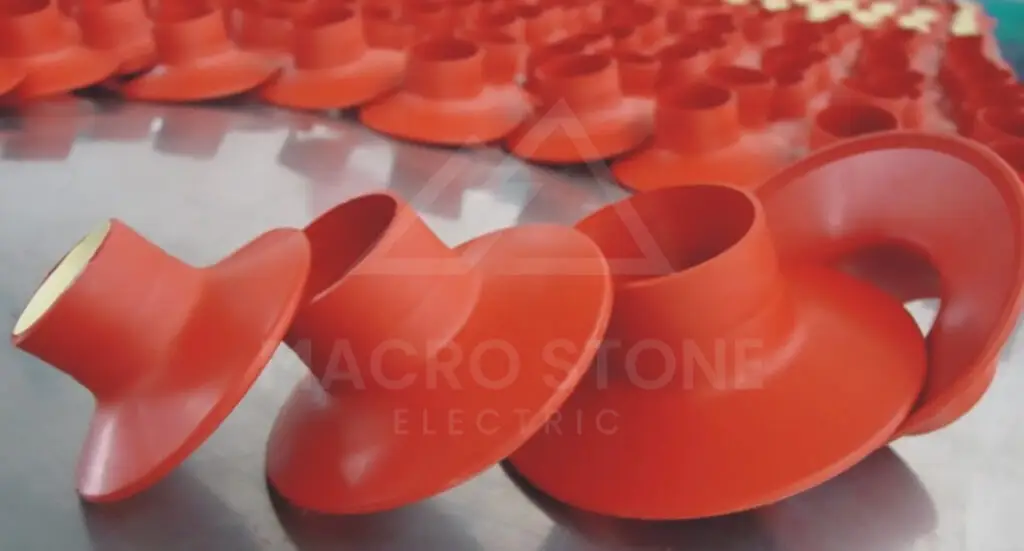

Made from high creep resistance, anti-tracking polyolefin compounds and coated with anti-track, weather resistant mastic, the high creep resistance and anti-tracking properties of the products provide max operation reliability. Used to provide insulation protection for cable outdoor termination.
| Specification | Before shrinkable(Dia of inside) | After shrinkable(Dia of inside) | Wall thickness after shrinkable | Length | Color |
|---|---|---|---|---|---|
| YQ‑1# | 30±1 | ≤14 | 3±0.2 | >100 | Red、Black |
| YQ‑2# | 35±1 | ≤14 | >100 | ||
| YQ‑3# | 40±1 | ≤20 | >115 | ||
| YQ‑4# | 50±1 | ≤20 | >115 | ||
| YQ‑5# | 60±1 | ≤30 | >135 | ||
| YQ‑6# | 70±1 | ≤30 | >135 | ||
| YQ‑1# | 30±1 | ≤14 | Three cores | ||
| YQ‑2# | 35±1 | ≤14 | |||
| YQ‑3# | 40±1 | ≤20 | |||
| YQ‑4# | 50±1 | ≤20 |
Dimension(mm)
