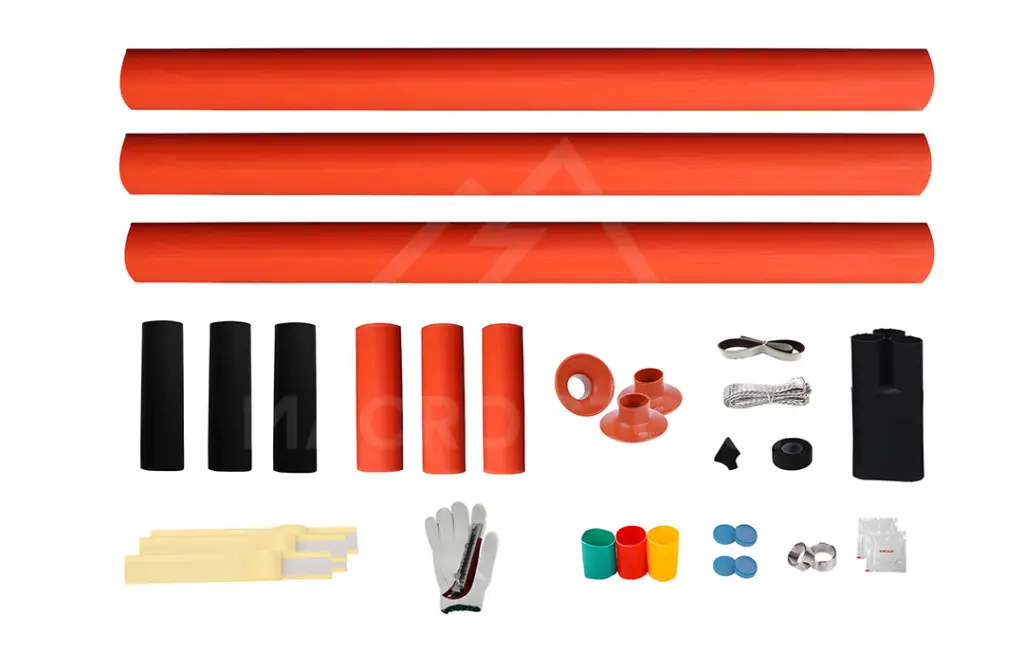

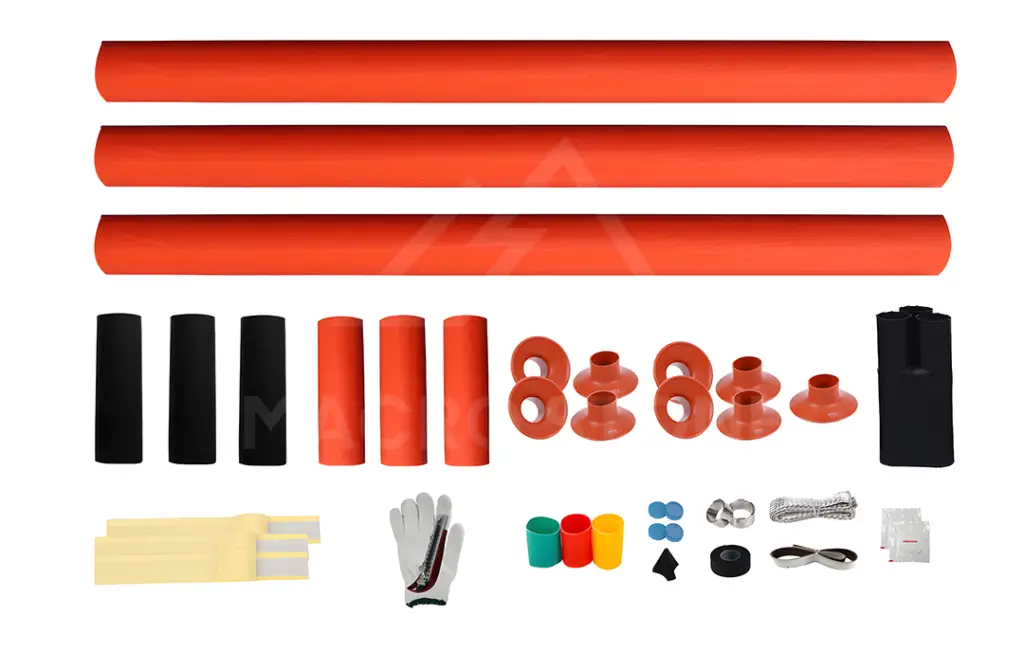

Suitable for 12/20kV, 18/20kV XLPE Insulated Single Core, Three Cores power cables.
| Test item | Parameter |
|---|---|
| Wet Power Frequency Withstand Voltage Test (Outdoor) | 48kV(72kV)/1min |
| Dry Power Frequency Withstand Voltage Test (Indoor) | 54kV(81kV)/5min |
| Impact Pressure Test | 125kV 1.2/50μs+10 times |
| Partial Discharge Test | ≤10pc（1.73Uo) |
| Product Name | Item Code | Applicable Cable Section(m㎡) |
|---|---|---|
| Single Core Indoor Termination | NSY-24/1.1 | 25-50 |
| NSY-24/1.2 | 70-120 | |
| NSY-24/1.3 | 150-240 | |
| NSY-24/1.4 | 300-500 | |
| Single Core Outdoor Termination | WSY-24/1.1 | 25-50 |
| WSY-24/1.2 | 70-120 | |
| WSY-24/1.3 | 150-240 | |
| WSY-24/1.4 | 300-500 | |
| Single Core Straight Joint | JSY-24/1.1 | 25-50 |
| JSY-24/1.2 | 70-120 | |
| JSY-24/1.3 | 150-240 | |
| JSY-24/1.4 | 300-500 | |
| Three Cores Indoor Termination | NSY-24/3.1 | 25-50 |
| NSY-24/3.2 | 70-120 | |
| NSY-24/3.3 | 150-240 | |
| NSY-24/3.4 | 300-500 | |
| Three Cores Outdoor Termination | WSY-24/3.1 | 25-50 |
| WSY-24/3.2 | 70-120 | |
| WSY-24/3.3 | 150-240 | |
| WSY-24/3.4 | 300-500 | |
| Three Cores Straight Joint | JSY-24/3.1 | 25-50 |
| JSY-24/3.2 | 70-120 | |
| JSY-24/3.3 | 150-240 | |
| JSY-24/3.4 | 300-500 | |
