· The solid palm eliminates the ingress of moisture
· Prefilled with jointing compound
· Friction welded
· Material: Cu ≥99.9%, Al ≥99.5 %

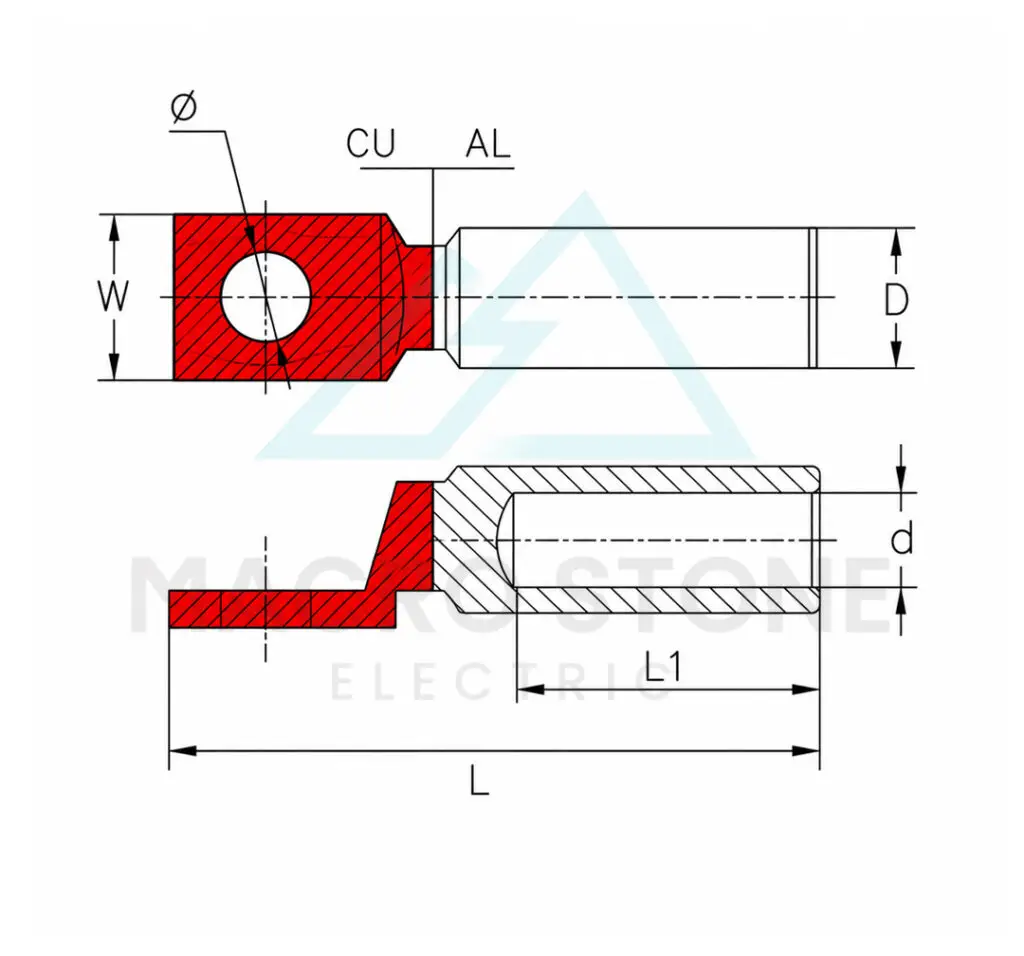

| Type | Φ±0.3 | D±0.2 | d±0.2 | L±0.2 | L1±0.2 | W±0.2 | S |
|---|---|---|---|---|---|---|---|
| DTL-2S-16 | 8.5 | 16 | 5.5 | 86 | 43 | 14 | 4 |
| DTL-2S-25 | 8.5 | 16 | 7 | 86 | 43 | 14 | 4 |
| DTL-2S-35 | 8.5 | 16 | 8.5 | 86 | 43 | 14 | 4 |
| DTL-2S-50 | 10.5 | 20 | 9.5 | 102 | 52 | 17 | 5 |
| DTL-2S-70 | 10.5 | 20 | 12 | 102 | 52 | 17 | 5 |
| DTL-2S-95 | 10.5 | 20 | 13.5 | 102 | 52 | 17 | 5 |
| DTL-2S-120 | 13 | 25 | 14.8 | 121 | 60 | 21 | 6 |
| DTL-2S-150 | 13 | 25 | 16.5 | 121 | 60 | 21 | 6.8 |
| DTL-2S-185 | 13 | 32 | 18.2 | 124 | 62 | 25 | 6 |
| DTL-2S-240 | 13 | 32 | 20.1 | 127 | 62 | 25 | 7 |
| DTL-2S-300 | 13 | 34 | 22.8 | 145 | 70 | 30 | 6.7 |
| DTL-2S-400 | 13 | 40 | 26 | 151 | 70 | 32 | 8 |
Specific product dimensions are subject to iteration. Please contact us for complete specifications. Custom sizes are available.
