-Centre with block.
-No needs of crimping tools but only a socket spanner or a wrench.
-Torque controled shear head bolts won't cause any damage to conductor, and make connector’s working performance more stable.
-Wide application range.
-Prefilled with jointing compound.
-Centre with block.
-No needs of crimping tools but only a socket spanner or a wrench.
-Torque controled shear head bolts won't cause any damage to conductor, and make connector’s working performance more stable.
-Wide application range.
-Prefilled with jointing compound.

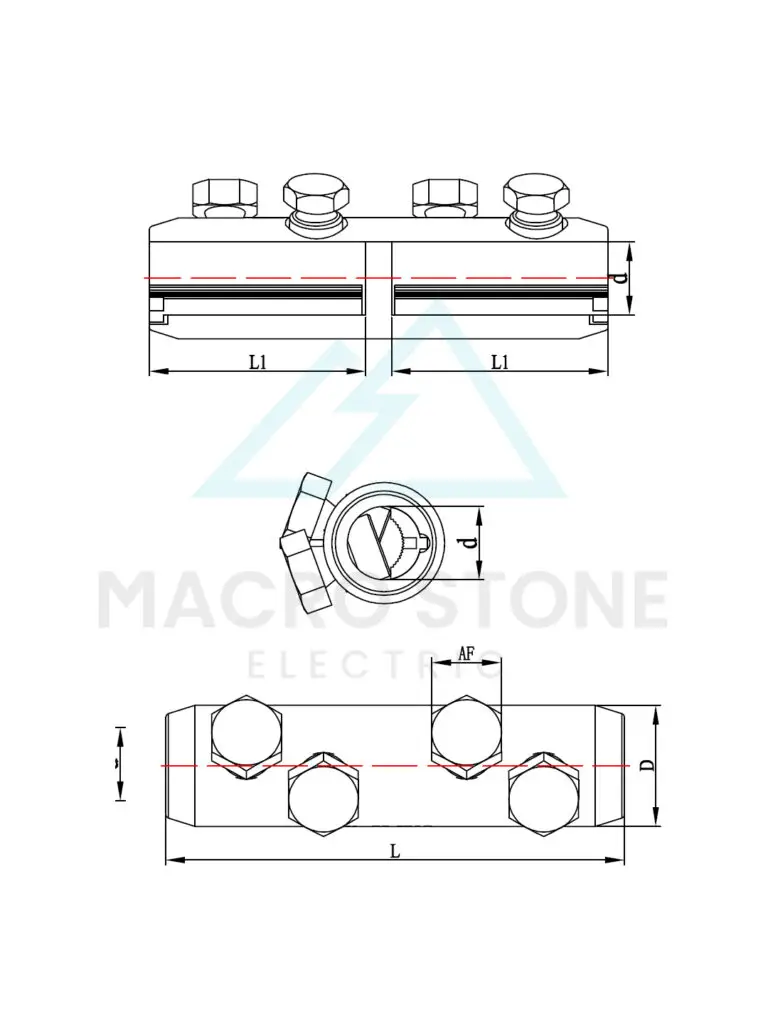

| Type | D | d | L | L1 | AF | BOLTS |
|---|---|---|---|---|---|---|
| BSMB-25-95/2L | 24 | 13.3 | 73 | 35 | 13 | 2 |
| BSMB-35-150/2L | 28 | 16 | 83 | 40 | 17 | 2 |
| BSMB-70-240/4L | 33 | 20 | 128 | 62.5 | 19 | 4 |
| BSMB-120-300/4L | 38 | 24 | 143 | 69.8 | 22 | 4 |
| BSMB-185-400/6L | 42 | 26 | 173 | 84.5 | 22 | 6 |
Specific product dimensions are subject to iteration. Please contact us for complete specifications. Custom sizes are available.
