The 36kV 630A T Connector provides a fully screened and fully submersible connection when mated with the proper bushing or plug. For connection of polymeric cable to transformers, switchgear, motors, and other equipment with a premoulded separable connector. These 36kV 630A
T Connector are made by EPDM with the good quality.
Tests conducted in accordance with IEC 60502-4. Partial discharge minimum extinction voltage - 45kV AC 60Hz for 1min(kV crest) - 117kV

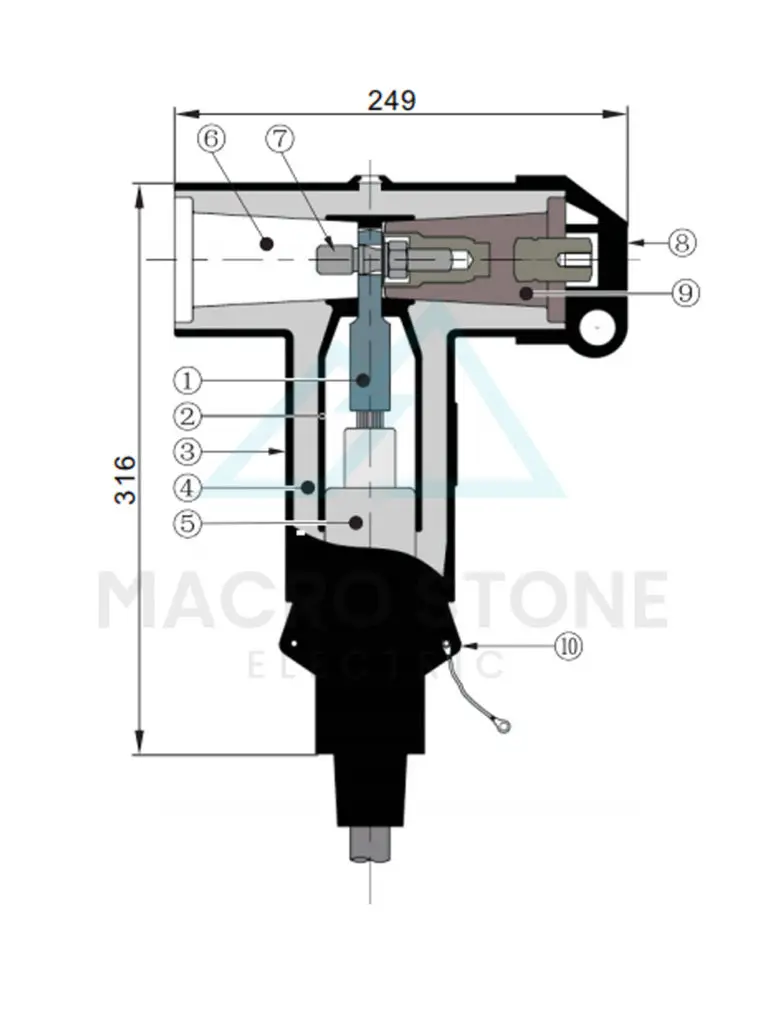

1. COMPRESSION LUG
Optional Copper, or Standard Bi-Metal, compression lug is sized toensure a cool running connection with maximum current transfer.
2.SEMICONDUCTING INSERT
Precision molded peroxide cured semiconducting insert provides corona-
free electrostatic shielding of the compression connector.
3.SEMICONDUCTING SHIELD
Precision molded peroxide cured semiconducting shield provides groundshield continuity.
4.INSULATION LAYER
High quality peroxide cured EPDM Insulation is mixed and formulated in-house for complete control of rubber characteristics.
5. CABLE ADAPTER
Molded cable adaptor, sized to fit cable insulation diameters from(26.8mm~49mm) 1.055inches to 1.929 inches, provides stress relief forthe terminated cable
6.INTERFACE
Type C-630Ainterface as described by CENELEC EN 50180 and 50181.
7.STUD
Zinc plated, threaded steel stud.
8.CONDUCTIVE RUBBER CAP
Provide a complete grounding system.
9.INSULATING PLUG
Molded epoxy insulating plug provides excellent electrical, thermal andmechanical reliability.
10.DRAIN WIRE TAB
Drain wire tabs provide a convenient point to connect drain wire to ensuregrounding of the connector shield.
- MS
- 36kV 630A
- DFT
- X (Cable Range Code)
- Y (Conductor Code)
- Z (Enter C if a plated Copper Connectoris Desired,Bi-metal are standard)
Note: Bi-metal lug for use on copper and aluminum conductors. Copper lug for use on copper conductors only.
| Continuous operating voltage: | 36kV |
|---|---|
| Maximum Rating Phase-to-Phase: | 40.5kV |
| Maximum Rating Phase-to-ground: | 26kV |
| AC withstand voltage,5min: | 117kV |
| DC withstand voltage,15min: | 106kV |
| Impulse withstand voltage: | 200kV |
| Minimum Corona Voltage Level: | 26kV |
| Cable Range Code | Inches | Millimeters |
|---|---|---|
| A | 1.055-1.173 | 26.8-29.8 |
| B | 1.201-1.319 | 30.5-33.5 |
| C | 1.268-1.386 | 32.2-35.2 |
| D | 1.299-1.417 | 33-36 |
| E | 1.421-1.539 | 36.1-39.1 |
| F | 1.500-1.618 | 38.1-41.1 |
| G | 1.575-1.693 | 40-43 |
| H | 1.654-1.772 | 42-45 |
| J | 1.811-1.929 | 46-49 |
| Conductor Code | Conductor Size (mm²) |
|---|---|
| 01 | 25 |
| 02 | 35 |
| 03 | 50 |
| 04 | 70 |
| 05 | 95 |
| 06 | 120 |
| 07 | 150 |
| 08 | 185 |
| 09 | 240 |
| 10 | 300 |
| 11 | 400 |
| 12 | 500 |
