Tests conducted in accordance with IEEE/ANSI Standard 386.
· Partial discharge minimum extinction voltage - 15kV
· AC 60Hz for 1 min (kV crest) - 34kV

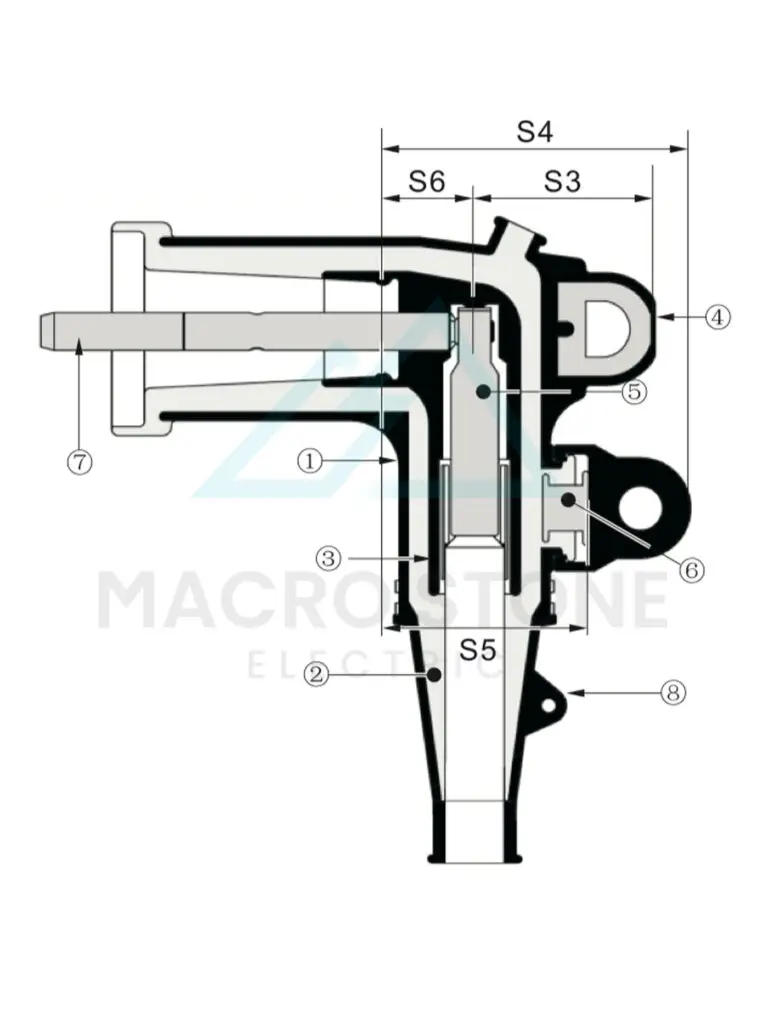

1. SEMICONDUCTING SHIELD
Precision-molded peroxide-cured semiconducting shield provides groundshield continuity and meets the requirements of IEEE Standard 592

2. INSULATION LAYER
High-quality peroxide-cured EPDM Insulation is mixed and formulated in-house for complete control of rubber characteristics.

3. SEMICONDUCTING INSERT
Precision-molded peroxide-cured semiconducting insert provides corona-free electrostatic shielding of the compression connector.

4. PULLING EYE
Stainless steel pulling eye for hot stick switching operations.

5. COMPRESSION CONNECTOR
Standard Bi-Metal, or optional Copper, compression connector is sized to ensure a cool-running connection with maximum current transfer.

6. CAPACITIVE TEST POINT
Capacitive test point on molded T-Body with snap-on cap provides a shielded, hot stick operable means to determine circuit condition.

7. LOADBREAK PROBE
Tin-plated copper probe with arc-extinguishing tip allows for dependable switching operations.

8. DRAIN WIRE TAB
Drain wire tabs provide a convenient point to connect the drain wire to ensure grounding of the connector shield.

- MS
- 15kV 200A
- LE
- X (Cable Range Code)
- Y (Conductor Code)
- Z (Enter C if a plated Copper Connectoris Desired,Bi-metal is standard)

Note: Bi-metal lug for use on copper and aluminum conductors. Copper lug for use on copper conductors only.
