The 36kV 630A T Sub Connector provides a fully screened and fully submersible connection when mated with the proper bushing or plug. For connection of polymeric cable to transformers, switchgear, motors, and other equipment with a premoulded separable connector. These 36kV 630A T Sub Connector are made by EPDM with the good quality.
Tests conducted in accordance with IEC 60502-4. Partial discharge minimum extinction voltage - 45kV AC 60Hz for 1min(kV crest) - 117kV

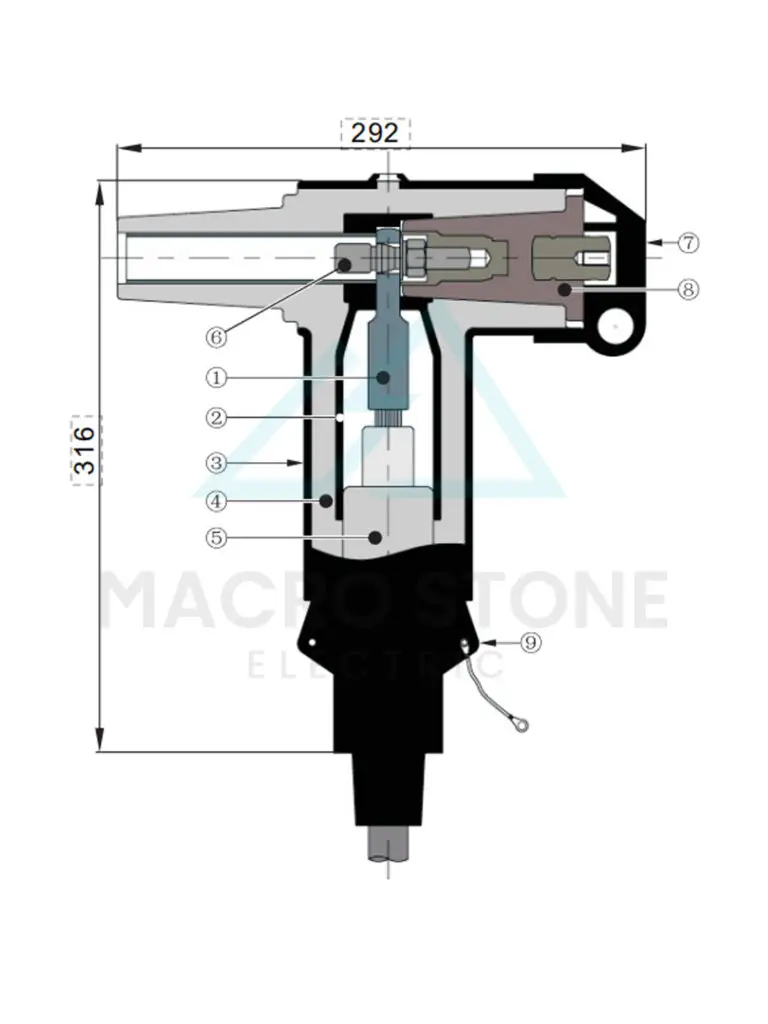

1.COMPRESSION LUG
Optional Copper, or Bi-Metal, compression lug is sized to ensure a cool running connection with maximum current transfer.
2.SEMICONDUCTING INSERT
Precision molded peroxide cured semiconducting insert providescorona-free electrostatic shielding of the compression connector.
3.SEMICONDUCTING SHIELD
Precision molded peroxide cured semiconducting shield providesground shield continuity.
4.INSULATION LAYER
High quality peroxide cured EPDM Insulation is mixed and formulatedin-house for complete control of rubber characteristics.
5. CABLE ADAPTER
Molded cable adaptor, sized to fit cable insulation diameters fromthe terminated cable.
(28.6mm~49mm) 1.055inches to 1.929 inches, provides stress relief for
6.STUDZinc plated, threaded steel stud7. CONDUCTIVE RUBBER CAPProvide a complete grounding system.
8. INSULATING PLUG
Molded epox y insul a ting plug provides excellent electrical, thermal and
mechanical reliability.
9. DRAIN WIRE TABgrounding of the connector shield.
Drain wire tabs provide a convenient point to connect drain wire to ensure grounding of the connector shield.
- MS
- 36kV 630A
- DRT
- X (Cable Range Code)
- Y (Conductor Code)
- Z (Enter C if a plated Copper Connectoris Desired,Bi-metal are standard)
Note: Bi-metal lug for use on copper and aluminum conductors. Copper lug for use on copper conductors only.
| Continuous operating voltage: | 36kV |
|---|---|
| Maximum Rating Phase-to-Phase: | 40.5kV |
| Maximum Rating Phase-to-ground: | 26kV |
| AC withstand voltage,5min: | 117kV |
| DC withstand voltage,15min: | 106kV |
| Impulse withstand voltage: | 200kV |
| Minimum Corona Voltage Level: | 26kV |
| Cable Range Code | Inches | Millimeters |
|---|---|---|
| A | 1.055-1.173 | 26.8-29.8 |
| B | 1.201-1.319 | 30.5-33.5 |
| C | 1.268-1.386 | 32.2-35.2 |
| D | 1.299-1.417 | 33-36 |
| E | 1.421-1.539 | 36.1-39.1 |
| F | 1.500-1.618 | 38.1-41.1 |
| G | 1.575-1.693 | 40-43 |
| H | 1.654-1.772 | 42-45 |
| J | 1.811-1.929 | 46-49 |
| Conductor Code | Conductor Size (mm²) |
|---|---|
| 01 | 25 |
| 02 | 35 |
| 03 | 50 |
| 04 | 70 |
| 05 | 95 |
| 06 | 120 |
| 07 | 150 |
| 08 | 185 |
| 09 | 240 |
| 10 | 300 |
| 11 | 400 |
| 12 | 500 |
