Tests conducted in accordance with lEC 60502-4.
Partial discharge minimum extinction voltage-20kV
AC 60Hz for 1min(kV crest)-54kV

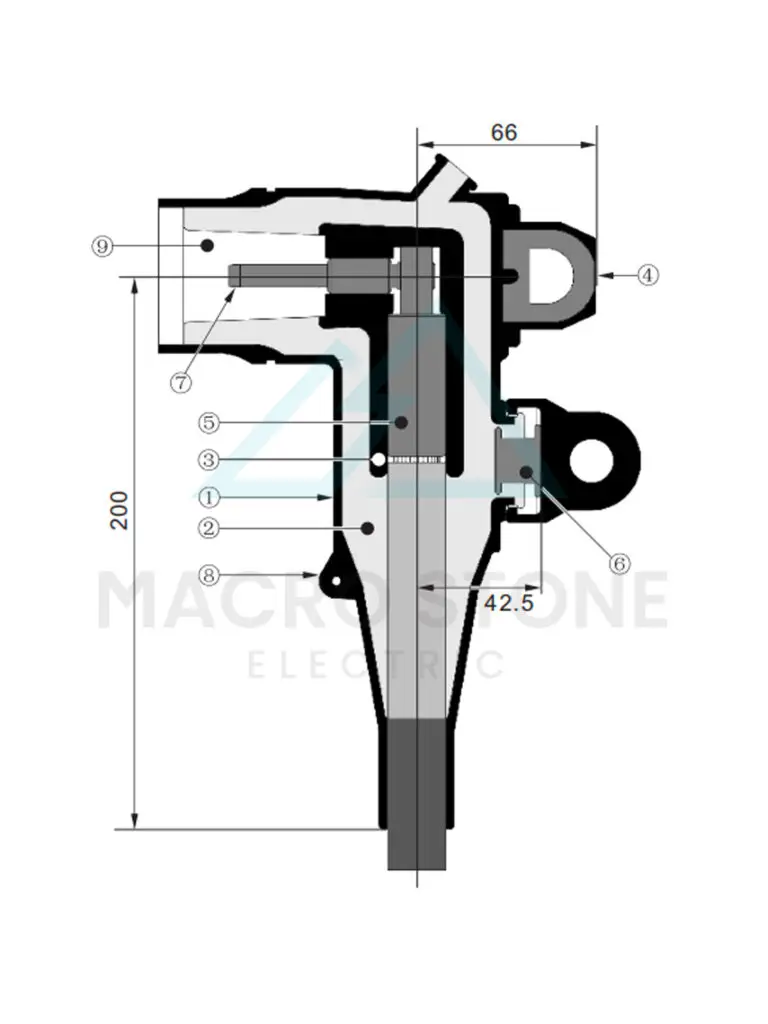

1. SEMICONDUCTING SHIELD
Precision molded peroxide cured semiconducting shield provides ground shield continuity and meets the requirements of lEEE Standard 592.
2. INSULATION LAYER
High quality peroxide cured EPDM Insulation is mixed and formulated in-house for complete control of rubber characteristics.
3. SEMICONDUCTING INSERT
Precision molded peroxide cured semiconducting insert provides corona-free electrostatic shielding of the compression connector.
4. OPERATING EYE
An integral part of an elbow designed for assisting a hold-down bails to fix.
5. COMPRESSION CONNECTOR
Standard Bi-Metal, or optional Copper, compression connector is sized to ensure a cool running connection with maximum current transfer.
6. CAPACITIVE TEST POINT
Capacitive test point on molded T-Body with snap-on cap provides a shielded, hot stick operable means to determine circuit condition.
7. PIN PROBE
Tin plated copper probe allows for dependable switching operations.
8. DRAIN WIRE TAB
Drain wire tabs provide a convenient point to connect drain wire to ensure grounding of the connector shield.
9. OPERATING INTERFACE
TypeA - 250A interface as described by MS50180 and 50181.

- MS
- 24kV 250A
- DE1/2
- X (Cable Range Code)
- Y (Conductor Code)
- Z (Enter C if a plated Copper Connectoris Desired, Bi-metal are standard)

Note : Bi-metal lug for use on copper and aluminum conductors. Copper lug for use on copper conductors only.
