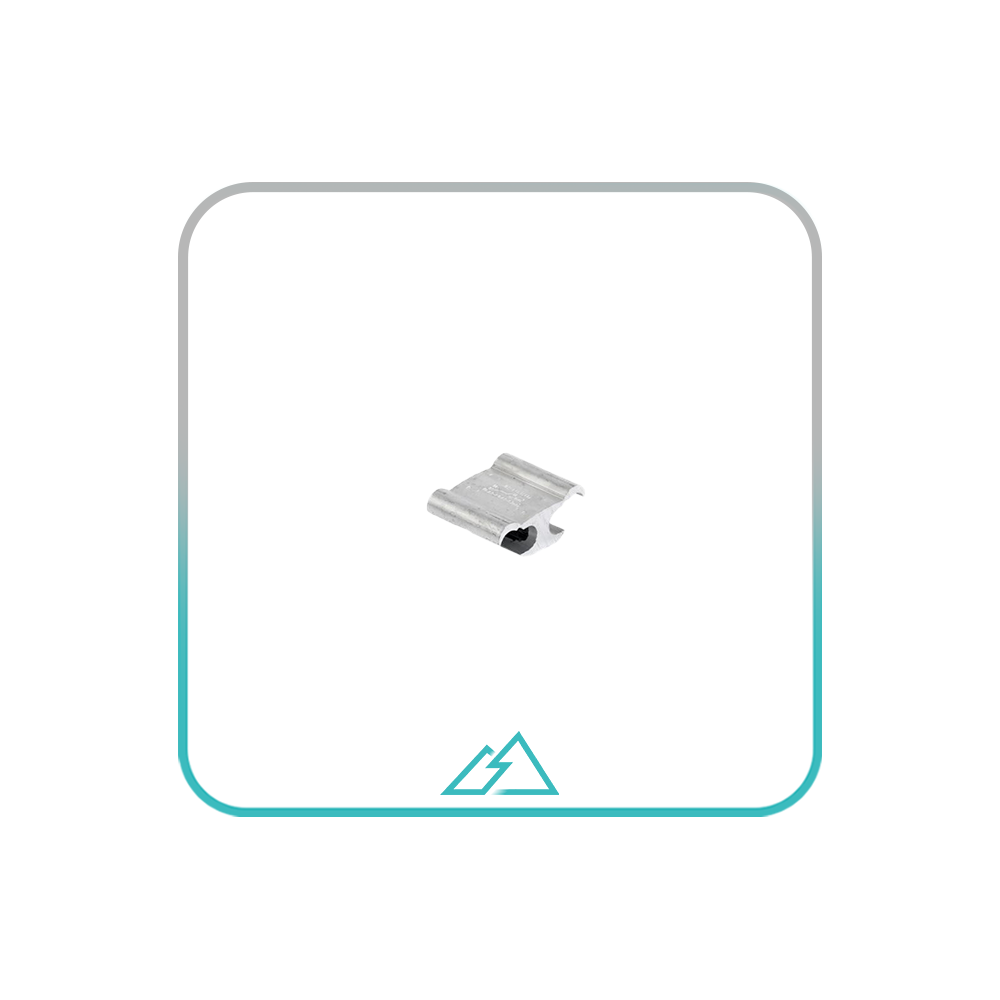

Special clamp Aluminum tap clamp H type

Cable Fitting, Parallel Groove Clamp

Special clamp Aluminum tap clamp H type

Structure Feature:

Tap grooves function independently ofeach other Use of one tap is requlred.Balance may be used of lelt emply.

Categories: Cable Fitting, Parallel Groove Clamp

Description
Reviews (0)

Type	Hole 1 (m㎡)	D1(mm)	Hole 2 (m㎡)	D2(mm)	A(mm)	B(mm)	C(mm)	H(mm)	L(mm)
AS-H1	16-35	4.8-8.2	16-35	4.8-8.2	4.8-8.2	7.1	24.3	15	38
AS-H2	50-95	8.3-14.5	50-95	8.3-14.5	4.8-9.5	13	36.6	22	48
AS-H3	50-95	10.0-14.5	50-95	10.0-14.5	10.0-14.5	7.1	35.6	20.6	60
AS-H4	95-240	13.0-22.5	95-240	13.0-22.5	4.8-11.5	14	50.6	30	51
AS-H5	95-240	13.0-22.5	95-240	13.0-22.5	11.6-16.0	9.4	50	32	51
AS-H6	150-240	16.2-22.5	150-240	16.2-22.5	16.2-22.5	5.1	50.5	30.6	89
