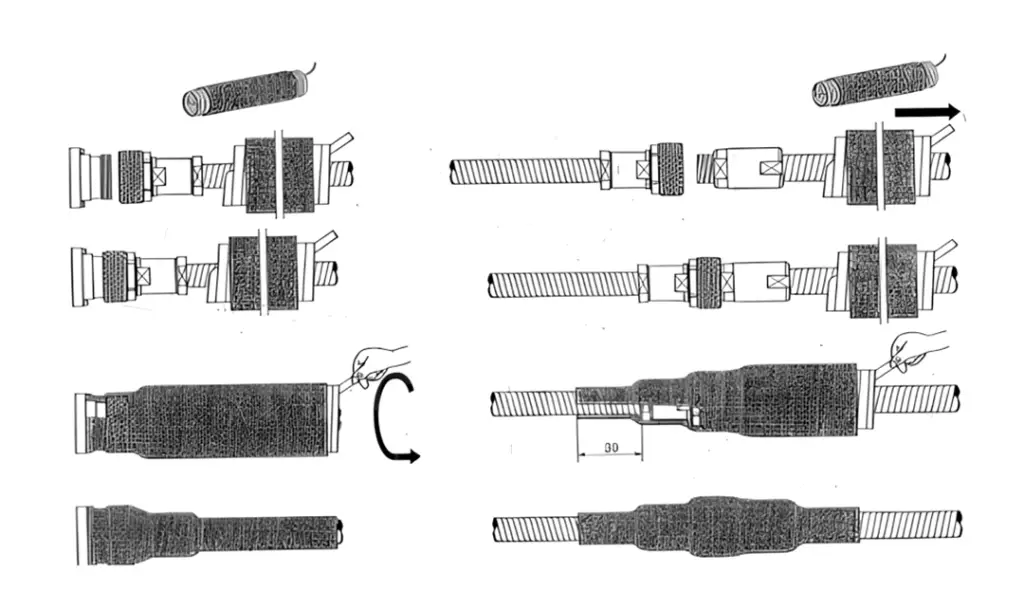

EPDM cold-shrink tubing is a rubber insulating sleeve pre‑expanded over a removable support mandrel. During installation, it is simply positioned, and the mandrel is withdrawn, allowing the radial pressure to form a tight seal that provides waterproofing and moisture resistance. With outstanding weather‑ and chemical‑resistance properties, it achieves a “breathable” sealing effect, making it an ideal sealing solution for communication cables, coaxial cables, and medium‑ and low‑voltage power cables.
| Product model | Corresponds to 3M | D (mm) | Applicable to the connection point | Applicable to the connection point | Fully shrinkage length L (mm) |
|---|---|---|---|---|---|
| Minimum outer diameter (mm) | Maximum outer diameter (mm) | ||||
| 25-8 | 8425-8 | F25 | 10 | 20 | 203 |
| 25-11 | 8425-11 | F25 | 10 | 20 | 280 |
| 25-12 | F25 | 10 | 20 | 300 | |
| 35-6 | 8426-6 | F35 | 14 | 30 | 152 |
| 35-8 | 8426-8 | F35 | 14 | 30 | 203 |
| 35-9 | 8426-9 | F35 | 14 | 30 | 230 |
| 35-11 | 8426-11 | F35 | 14 | 30 | 280 |
| 40-6 | 8427-6 | F40 | 17.5 | 33 | 152 |
| 40-8 | 8427-8 | F40 | 17.5 | 33 | 203 |
| 40-10 | 8427-10 | F40 | 17.5 | 33 | 254 |
| 40-12 | 8427-12 | F40 | 17.5 | 33 | 305 |
| 40-16 | 8427-16 | F40 | 17.5 | 33 | 406 |
| 40-18 | 8427-18 | F40 | 17.5 | 33 | 457 |
| 53-6 | 8428-6 | F53 | 25 | 46 | 152 |
| 53-7 | 8428-7 | F53 | 25 | 46 | 180 |
| 53-8 | 8428-8 | F53 | 25 | 46 | 203 |
| 53-10 | 8428-10 | F53 | 25 | 46 | 254 |
| 53-12 | 8428-12 | F53 | 25 | 46 | 305 |
| 53-18 | 8428-18 | F53 | 25 | 46 | 457 |
| 60-10 | 98KC-21 | F60 | 20.5 | 51 | 254 |
| 70-6 | 8429-6 | F70 | 32 | 63 | 152 |
| 70-7 | 8429-7 | F70 | 32 | 63 | 180 |
| 70-9 | 8429-9 | F70 | 32 | 63 | 230 |
| 70-12 | 8429-12 | F70 | 32 | 63 | 305 |
| 70-13 | 8429-13 | F70 | 32 | 63 | 330 |
| 70-14 | 8429-14 | F70 | 32 | 63 | 355 |
| 70-18 | 8429-18 | F70 | 32 | 63 | 457 |
| 80-13 | 98KC-31 | F80 | 27.4 | 70 | 325 |
| 104-8 | 8430-8 | F104 | 43 | 94 | 203 |
| 104-9 | 8430-9 | F104 | 43 | 94 | 229 |
Note: Customizable inner diameters ranging from Ф25 to Ф155.
Products with lengths ranging from 50 to 1000 mm
