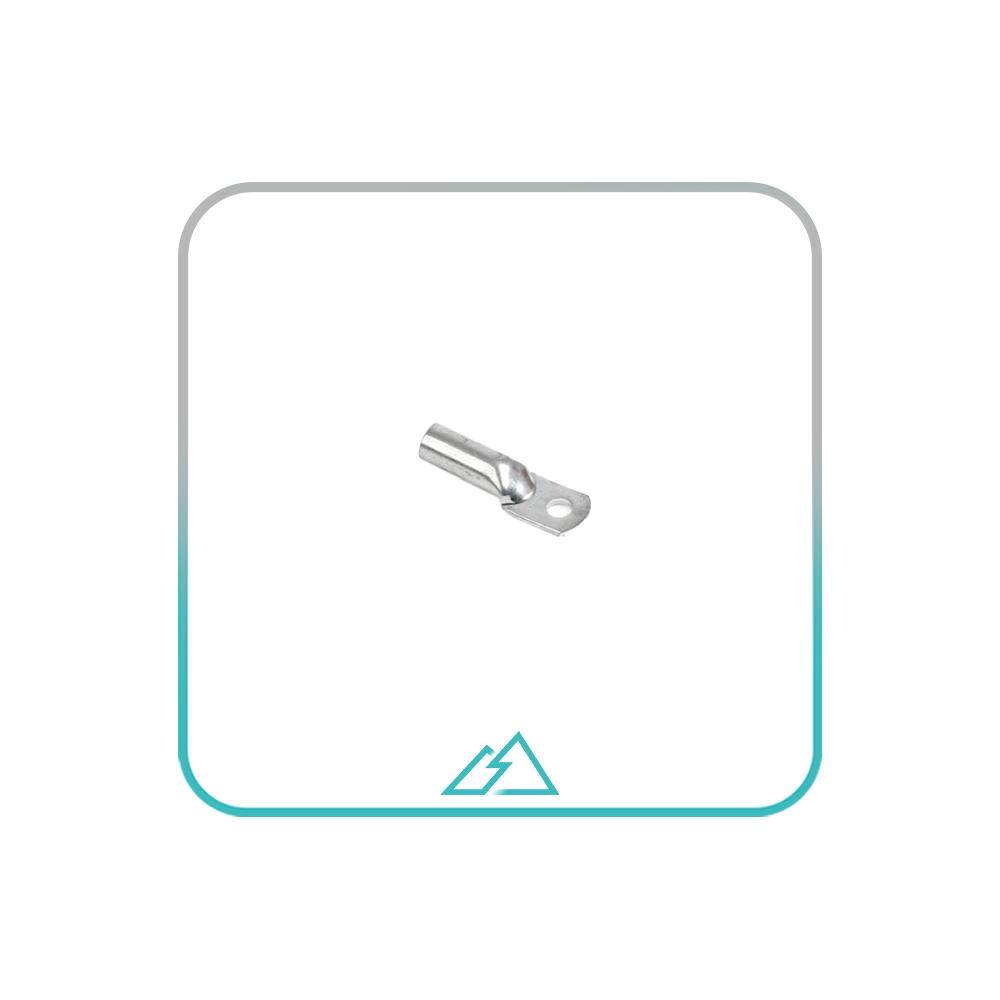

Copper lugs DT(G)serie

Cable Fitting, Copper Lugs and Connectors

Copper lugs DT(G)serie

Have a viewing window to checkthe location ofthe conductor

Cable area is identified clearly on the lug

Material:CU≥99.9%

Application:low voltage

Categories: Cable Fitting, Copper Lugs and Connectors

Description
Reviews (0)

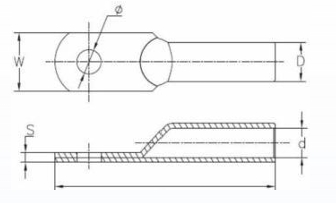

Type	Dimension(mm)
Type	Φ	D	d	L	L1
DT(G)-10	8	8	5.5	50	28
DT(G)-16	8	8	6.2	56	29
DT(G)-25	8	10	7.2	62	32
DT(G)-35	10	11	8.2	65	33
DT(G)-50	10	13	10.2	72	37
DT(G)-70	12	16	12	80	43
DT(G)-95	12	18	14	85	45
DT(G)-120	14	20	15.5	90	50
DT(G)-150	14	22	17	100	52
DT(G)-185	16	24	19	114	60
DT(G)-240	16	26	21	118	70
DT(G)-300	16	30	24	135	75
DT(G)-400	18	34	27	150	80
DT(G)-500	20	38	30	170	90
DT(G)-630	22	45	35.5	210	105
DT(G)-800	22	50	40	225	115
DT(G)-1000	22	57	45	225	128
