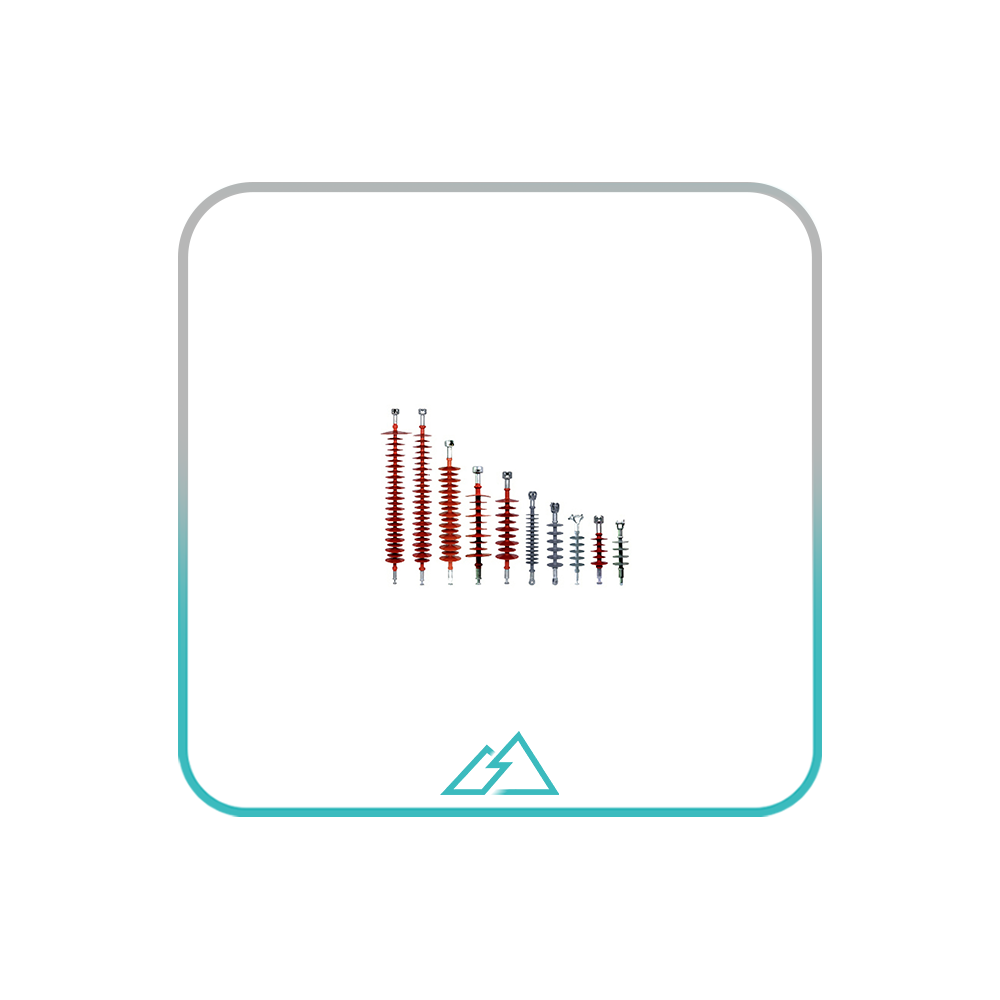

Composite Suspension Insulators

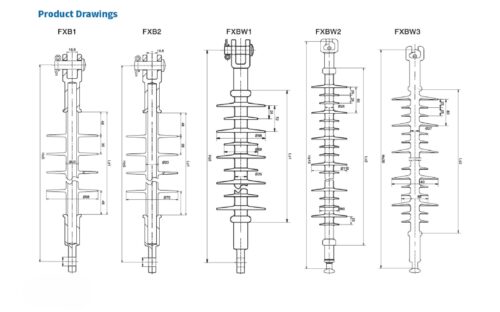

Model	Rated Voltage	Specified Mechanical Tensile Load (SML)	Section Length H	Polymer Length L	Minimum Creepage Distance	Lightning Impulse Withstand Voltage	I min Power Frequency Withstand Voltage(KV)	I min Power Frequency Withstand Voltage(KV)
Model	KV	KN	mm	mm	mm	KV	Dry	Wet
FXB1-10/40	10	40	291	155	340	135	66	60
FXB1-10/70	10	70	325	155	340	135	66	60
FXB2-10/40	10	40	301	165	440	141	70	60
FXB2-10/70	10	70	346	190	535	147	78	60
FXB2-10/100	10	100	346	190	535	147	78	60
FXBW1-10/40	10	40	342	196	600	125	100	60
FXBW1-10/70	10	70	370	196	600	125	100	60
FXBW1-10/100	10	100	402	196	600	125	100	60
FXBW1-10/120	10	120	412	196	600	125	100	60
FXBW1-20/70	20	70	422	300	750	187	121	108
FXBW1-20/100	20	100	442	300	750	187	121	108
FXBW1-22/120	20	120	454	300	750	187	98	70
FXBW1-24/70	24	70	450	292	604	180	120	96
FXBW2-24/70	24	70	465	292	847	170	120	90
FXBW2-24/100	24	100	500	292	847	170	120	90
FXB1-33/70	33	70	570	416	912	294	99	76
FXB1-33/100	33	100	600	416	912	294	99	76
FXB2-33/70	33	70	570	434	1154	200	90	70
FXB2-33/100	33	100	600	434	1154	200	90	70
FXBW2-35/70	35	70	620	464	1115	230	150	130
FXBW2-35/100	35	100	660	464	1115	230	150	130
FXBW2-35/120	35	120	680	464	1115	230	150	130
FXBW2-66/100	66	100	880	709	1970	400	240	140
FXBW2-66/100	66	100	990	770	1970	410	210	185
FXBW3-110/70	110	70	1220	1099	3518	550	290	230
FXBW3-110/100	110	100	1240	1099	3518	550	290	230
FXBW3-110/120	110	120	1260	1099	3518	550	290	230
FXBW3-132/100	132	100	1440	1294	4109	550	320	290
FXBW3-132/120	132	120	1460	1294	4109	550	320	290
FXBW3-220/100	220	100	2150	2000	6572	100	540	495
FXBW3-220/120	220	120	2170	2000	6572	100	540	495
Note:OEM service in accordance with technical requirements are available upon request.
