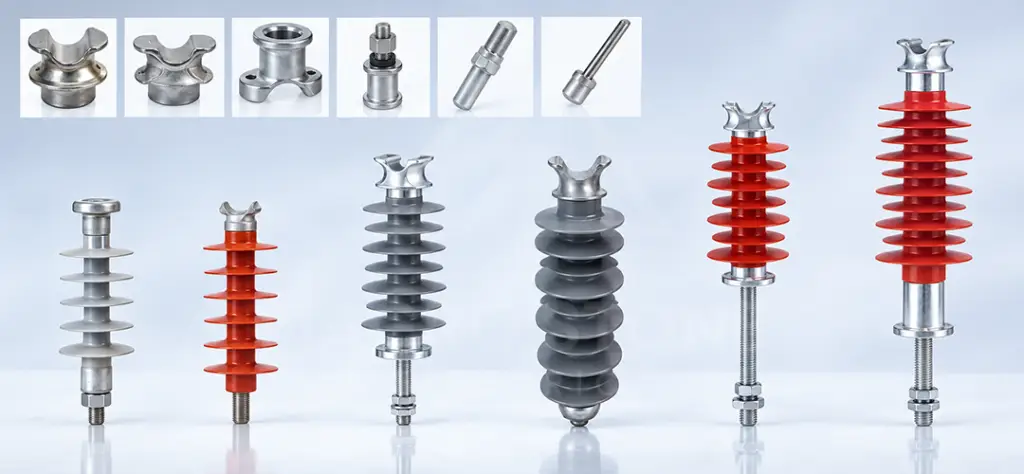

Composite Line Post Insulator

Technical Data

Product parameters

Model	Rated Voltage(KV)	Specified Mechanical Bending Load(KN)	Section Length H(mm)	Polymer Length L(mm)	Minimum Creepage Distance(mm)	Lightning Impulse Withstand Voltage(KV)	1 min Power Frequency Withstand Voltage Dry(KV)	1 min Power Frequency Withstand Voltage Wet(KV)
FP-10/5T16	10	5	223	165	358	90	65	40
FP-10/5T18	10	5	223	165	358	90	65	40
FP-15/5T18	15	5	253	200	451	110	70	50
FP-15/5T20	15	5	253	200	451	110	70	50
FP-20/6T20	20	6	320	240	800	145	95	75
FP-10/12.5T20	20	12.5	358	305	790	145	95	75
FP-10/12.5T22	20	12.5	358	305	790	145	95	75
FP-24/6T20	24	6	272	160	650	125	95	75
FP-24/6T22	24	6	272	160	650	125	95	75
FP-36/12.5T20	36	12.5	410	383	960	210	143	98
FP-36/12.5T22	36	12.5	410	383	960	210	143	98
FP-36/12.5T24	36	12.5	410	383	960	210	143	98
