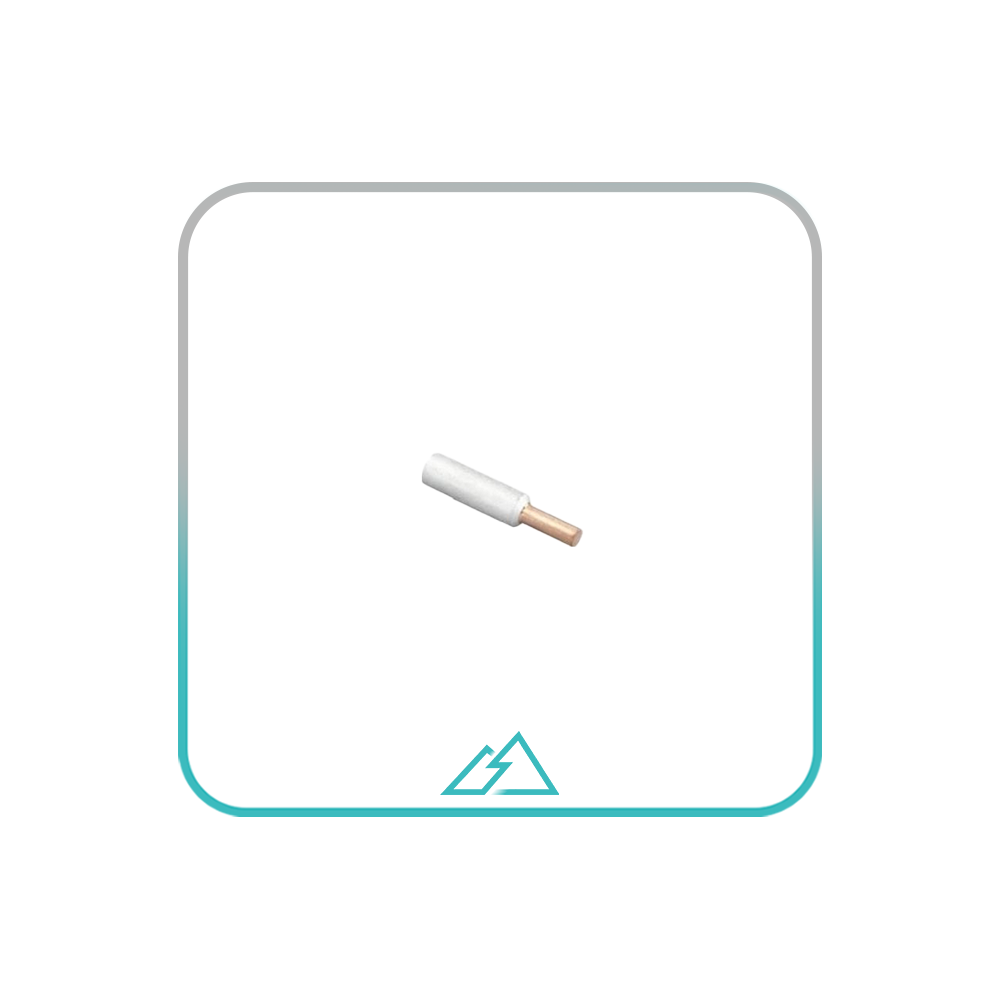

Bimetal lugs GTLZ series

Suitable for screwingnon-tension Alconnections in Cuclamps

Friction welded

Aluminium barrelis filled byneutral grease andcovered by cap

Pre-rounded sector shaped conductors

Material:CU≥99.9%,AL≥99.5%

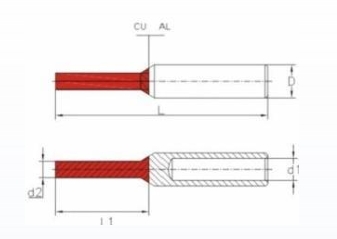

Type d1±0.2 D±0.2 d2±0.2 L1±2 L±2
GTLZ-16 6.3 12 6 20 58
GTLZ-25 7.1 12 6 20 58
GTLZ-35 8.5 14 7 22 71
GTLZ-50 10 16 8 25 74
GTLZ-70 11.5 18 10 30 87
GTLZ-95 13.5 22 12 33 91
GTLZ-120 15 23 12 38 98
GTLZ-150 18.5 25 12 38 108
GTLZ-185 19 27 14 40 118
GTLZ-240 21 32 16 40 128
