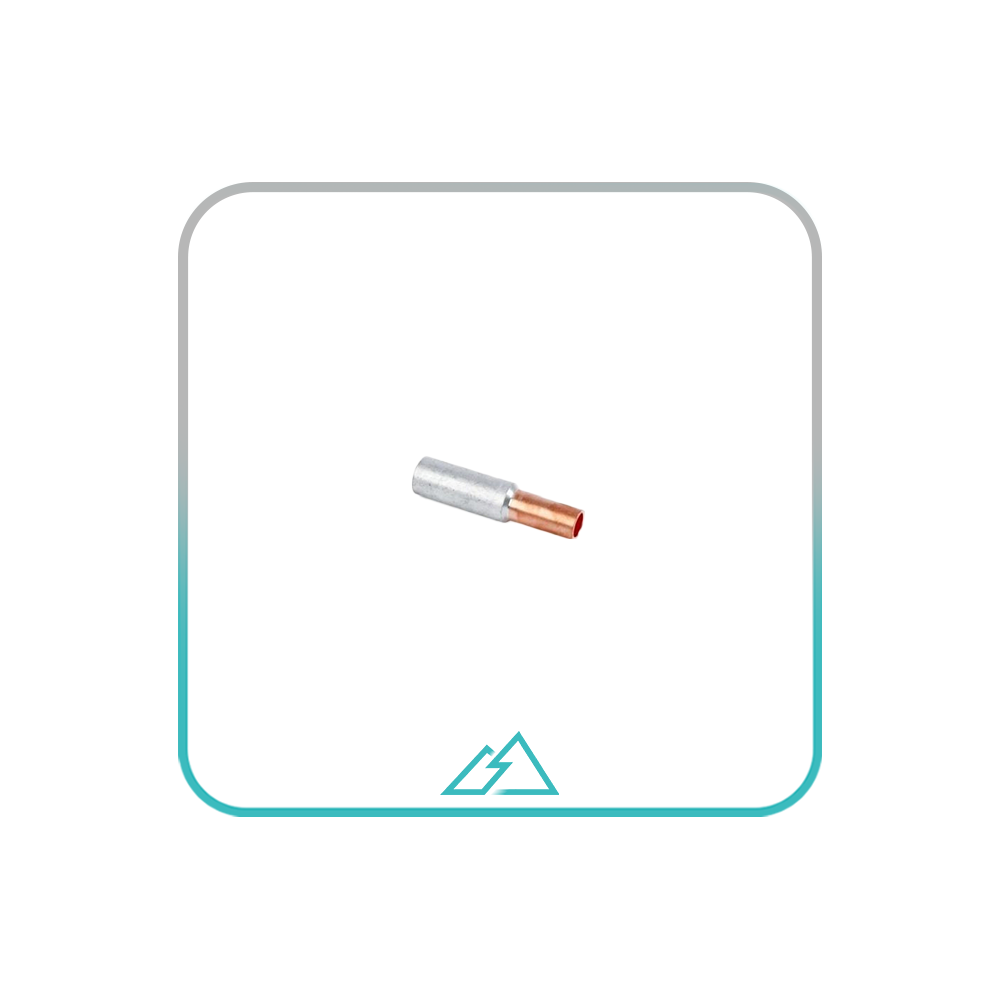

Bimetal lugs GTL series

Bi-metal Lugs & Connector, Cable Fitting

Bimetal lugs GTL series

Suitable for screwingnon-tension Alconnections in Cuclamps

Friction welded

Aluminium barrelis filled byneutral grease andcovered by cap

Pre-rounded sector shaped conductors

Material:CU≥99.9%,AL≥99.5%

Categories: Bi-metal Lugs & Connector, Cable Fitting

Description
Reviews (0)

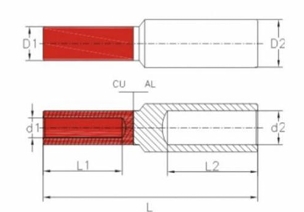

Type	D1±0.2	d1±0.2	D2±0.2	d2±0.2	L1±2	L2±2	L±2
GTL-25	10	6.5	12	7.2	28	37	75
GTL-35	11	7.5	14	8.5	29	40	85
GTL-50	12	8.5	16	10.2	34	42	89
GTL-70	14	10.2	18	11.5	36	46	98
GTL-95	16	11.5	21	13.5	35	54	105
GTL-120	18	13.5	23	15	39	56	109
GTL-150	20	15	25	16.5	43	55	115
GTL-185	22	16.5	27	18.5	45	58	125
GTL-240	24	18.5	30	21	48	61	130
GTL-300	27	20.5	34	23.5	53	70	145
GTL-400	30	23.5	38	26.5	59	73	155
