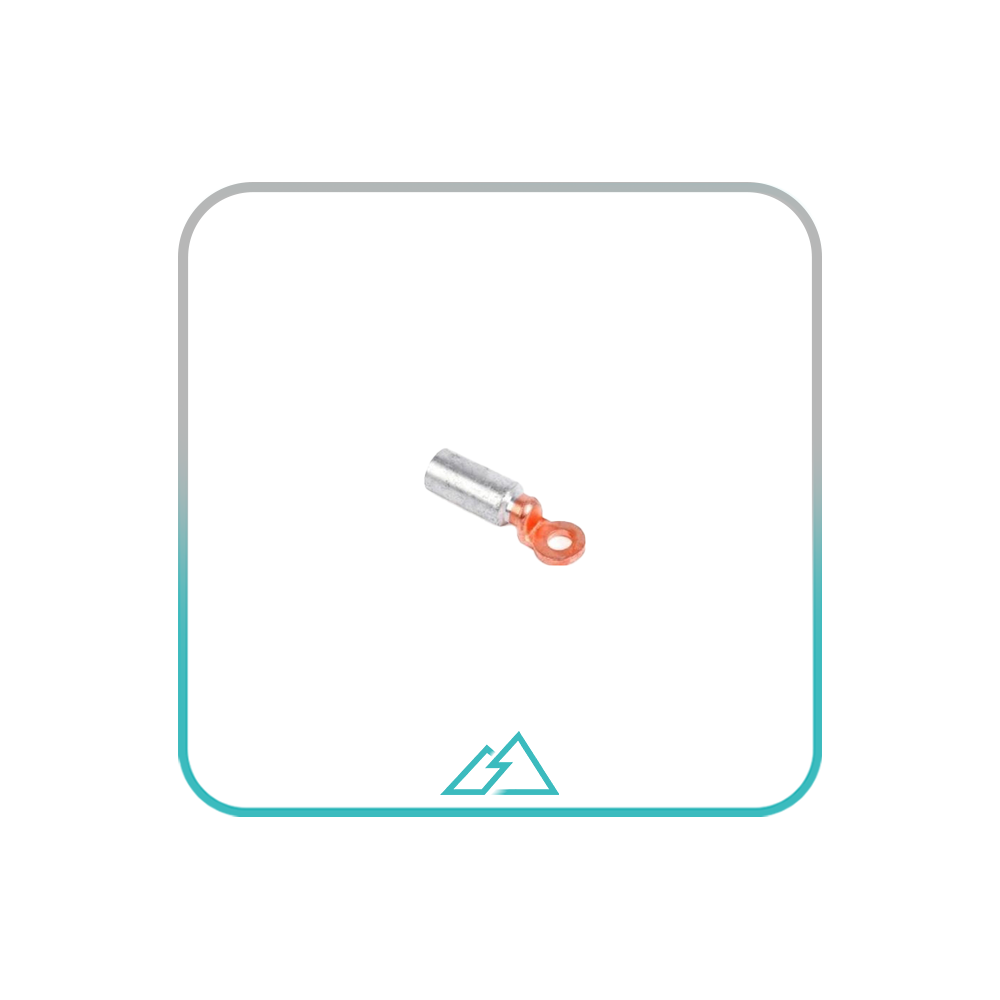

Bimetal lugs DTL-5 series
,

Bimetal lugs DTL-5 series

Application:
Used for transition connection of aluminum cable or aluminum alloy cable with copper end
ofelectrical equipment in medium voltage.Suitable for connecting ABC cables to
transformers,switchgear etc.
Material:Al≥99.5%,CU≥99.9%
Feature:
Oil blocking structure Friction welded
Prefilled with jointing compound.

Categories: ,

Type Φ±0.3 D±0.2 d±0.2 L±2 L1±2 s W±0.2
DTL-5-16 10.5 16 5.5 80 42 4 20
DTL-5-25 10.5 16 6.5 80 43 4 20
DTL-5-35 10.5 16 8 80 43 4 20
DTL-5-50 13 20 9 92 43 5 24
DTL-5-70 13 20 11 92 43 5 24
DTL-5-95 13 20 12.5 92 43 5 24
DTL-5-120 13 25 13.5 115 60 6 30
DTL-5-150 13 25 15.5 113 60 6 30
DTL-5-185 16.5 32 17 122 60 6 35
DTL-5-240 16.5 32 19.5 125 60 6 35
DTL-5-300 16.5 34 23 155 93 7 35
DTL-5-400 16.5 40 26 155 93 7 36
