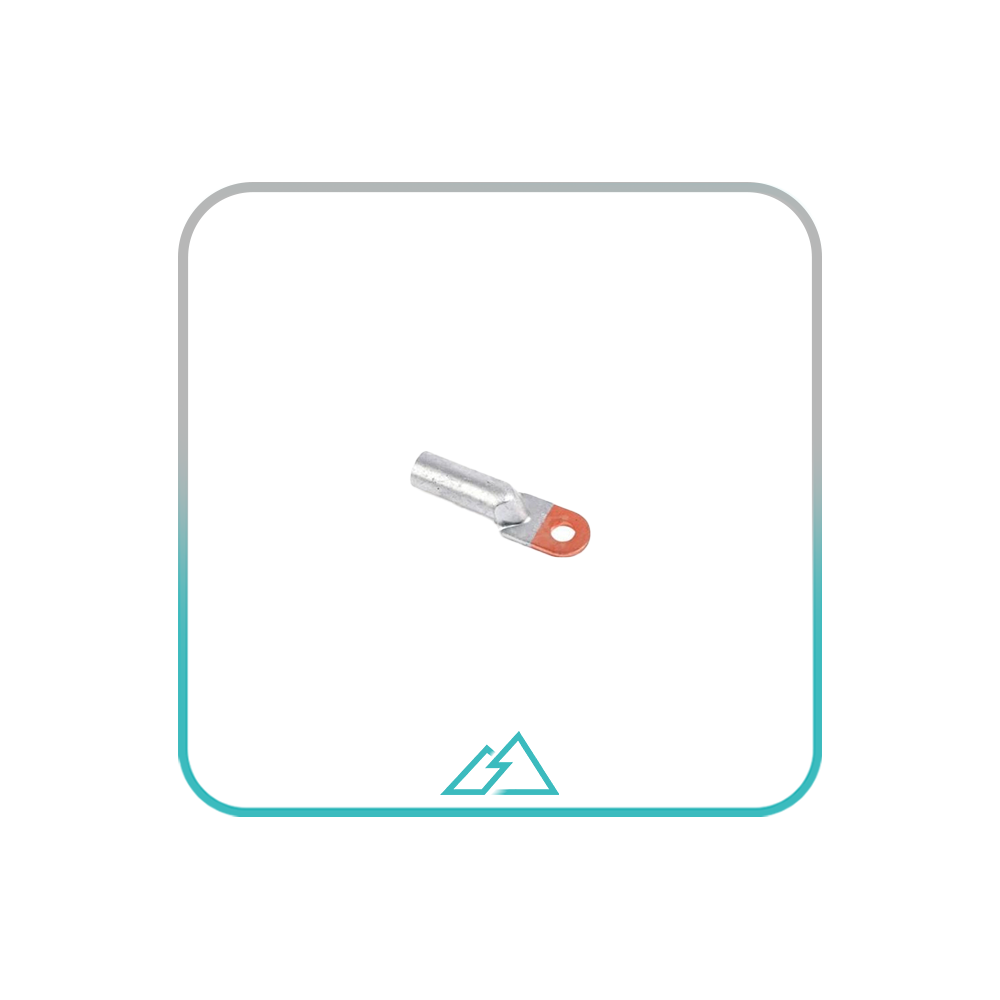

Bimetal lugs DTL-1 series

Bi-metal Lugs & Connector, Cable Fitting

Bimetal lugs DTL-1 series

Material:Al≥99.5%,CU≥99.9%
Feature:
Oil blocking structure
Friction welded
Prefilled with jointing compound.

Categories: Bi-metal Lugs & Connector, Cable Fitting

Description
Reviews (0)

Type	Φ±0.3	D±0.2	d±0.2	L±2	L1±2	W±0.2	S±0.2
DTL-1-10	8	9.2	5.2	66.2	30	16	2.2
DTL-1-16	8	10.6	6.2	66.2	30.4	16	2.2
DTL-1-25	8.5	12	7.5	74	36	18	2.3
DTL-1-35	10.5	14	8.5	81	40	20	2.7
DTL-1-50	10.5	16	10	90	41	26	3.3
DTL-1-70	12.5	18.5	12	98	49	27	3.8
DTL-1-95	12.5	21	14	109	51	28	4
DTL-1-120	14.5	23	15	116	56	30	4.3
DTL-1-150	14.5	25	17	128	56	34	5
DTL-1-185	16.5	27	19	130	52	37	5.5
DTL-1-240	16.5	30	21	140	65	40	6.2
DTL-1-300	21	34	23.5	160	70	50	7.2
DTL-1-400	21	38.4	26.8	166	76	50	7.1
DTL-1-500	21	40	29.5	184	80	54.8	9
DTL-1-630	21	45	33	201	81	59.6	9.3
