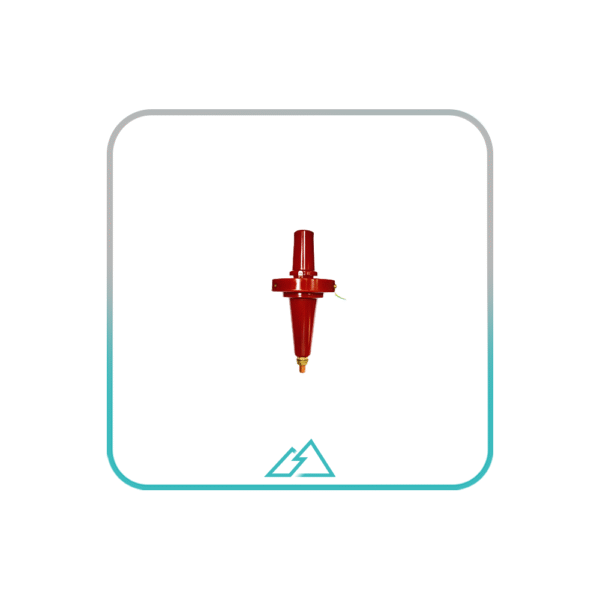

36kV 400A Deadbreak Bushing provides the Interface B for the cable connector and mostly used on the oil-insulated (R-temp, hydrocarbon, or silicon) apparatus, including switchgear, transformers and capacitors.
Performance
The Deadbreak Bushings are molded with high quality insulating material meeting the requirement of standard EN50180/EN50181 DIN4 7636/HN52-S-61.
Order Information
| Description | Reference No. |
| Deadbreak Bushing | UG DB-36/400 |
Ratings Overview
| Item | 36kV |
| Continuous operating voltage | 26kV/35kV |
| AC withstand voltage | 117kV / 5min |
| DC withstand voltage | 104kV |
| 1.5/50µs Impulse whthstand voltage | 215kV |
| Partial discharge voltage | 45kV<10pc |
Bom
– Deadbreak Bushing
– Covering Cap
– Seal Ring
– Pressing Plate
– Installation Instruction Sheet(Optional)
