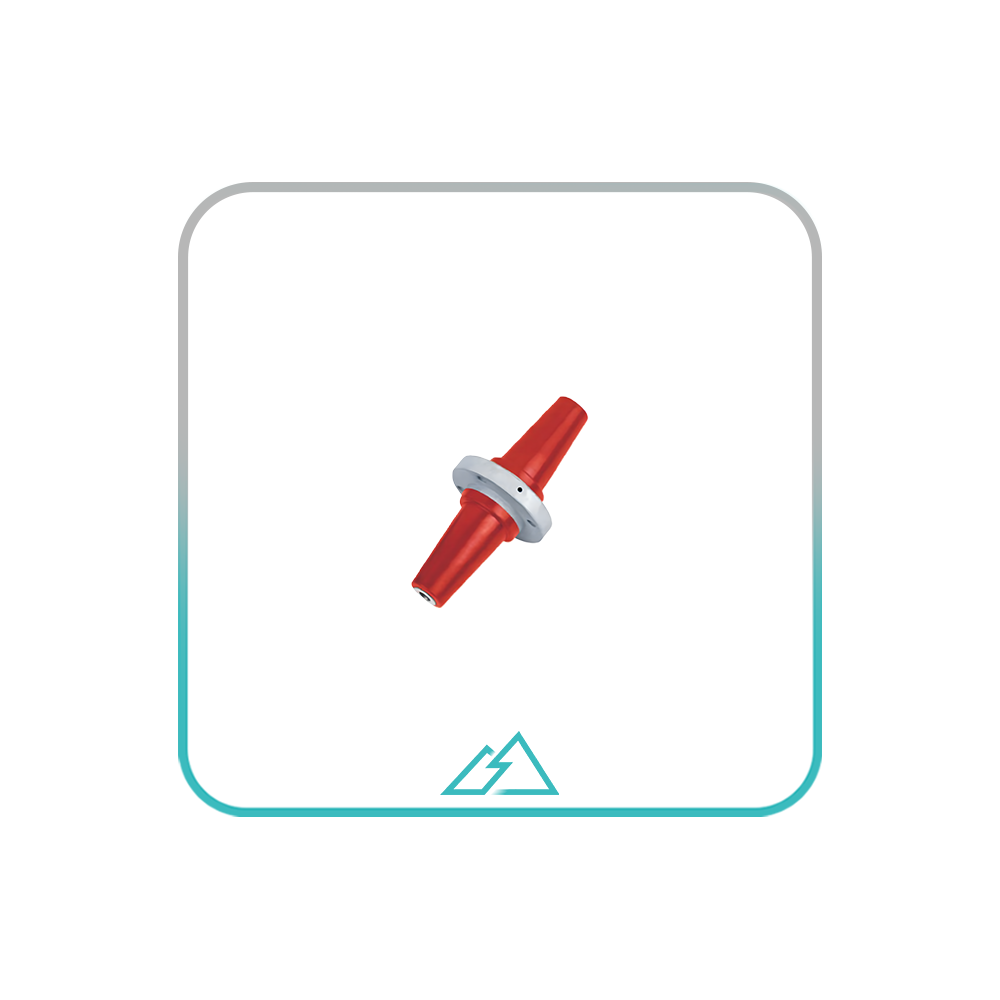

35kV 600A Two-Side Bushings are used to connect two or more 600A deadbreak terminators. Two-Side Bushings are typically used in a separable splice, or with a bushing extender, to increase the distance from the apparatus front plate to the 600A terminator, easing cable training. The Two-Side Bushing maintaining full interchangeability with all manufacturers’ mating component items, and make sure it have been grounding. The Bushing is molded with high quality insulating epoxy resin, with 5/8″-11 copper threads and flange to make sure the two side bushing can be install on the equipment.
Order Information
| Description | Reference No. | Voltage Rating | Current Rating |
| 35kV 600A Two-Side Bushing | UG DBT-35/600 | 35kV | 600A |
Bom
– Two-Side Bushing
– Covering Cap
– Installation Instruction Sheet(Optional)
Electrical Characteristics
| Voltage Rating | 35kV |
| Maximum Rating Phase-to-phase | 36.6kV |
| Maximum Rating Phase-to-ground | 21.1kV |
| AC 50Hz 1 Minute Withstand | 50kV |
| DC 15 Minute Withstand | 103kV |
| BIL and 1.5 / 50µs Impulse Withstand Voltage | 150kV |
| Partial Discharge Voltage | 26kV ( <3pC) |
| Continuous Current | 600A |
| 24h Overload | 1000A |
| Short Time | 25kA rms sym. For 0.17s(60Hz)/0.2s(50Hz) 10kA rms sym. for 3.0s |
| Meets ANSI/IEEE 386, latest version. Mate with bushing interface figure 13. | |
