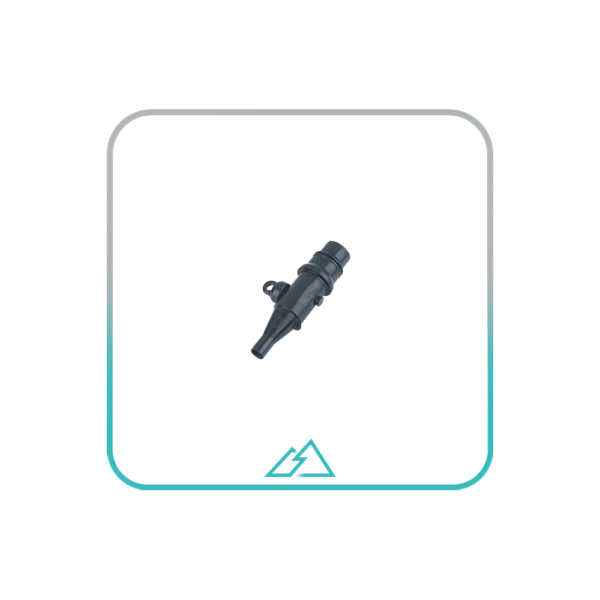

The 24kV 250A Deadbreak Straight connector is a fullyshielded and insulated plug-in termination, rated 250 amps,up to 24kV, connected with underground cable ranging from 35 to 120 mm² (conductor cross section).
Performance
The Deadbreak Straight connector are molded by high quality peroxide-cured EPDM insulation. It is used to connect underground cable to transformers, switchgear and 250 amps bushings.The test point is available for use with hot line voltage indicators. It is the essential component for high-voltage electrical connection of the padmounted transformers, submersible transformer,switchgear and deadbreak bushings. The design of the straight connector allows connecting the cable straightly, not to bend an angle of 90 degree.
Order Information
| Description | Reference No. | Voltage Rating | Current Rating |
| UG DS-24/250-35 | 35 | 19.6-24.1 | F |
| UG DS-24/250-50 | 50 | 19.6-24.1 | F |
| UG DS-24/250-70 | 70 | 23.6-26.4 | H |
| UG DS-24/250-95 | 95 | 23.6-26.4 | H |
| UG DS-24/250-120 | 120 | 27.9-33.5 | J |
The cable range is the basic element for choosing the product’s type. The conductor size is just for a reference.
The adapter code should be confirmed while ordering.
Electrical Characteristics
| Voltage Rating | 24kV |
| Maximum Rating Phase-to-ground | 12kV |
| AC 50Hz 5 Minute Withstand | 54kV |
| DC 15 Minute Withstand | 48kV |
| BIL Impulse Withstand Voltage | 125kV |
| Partial Discharge Voltage | 20kV (< 10pC) |
| Continuous Current | 250A |
| Short Time | 10kA rms sym. for 0.2s 35kA rms sym. for 3.0s |
| Meets IEC 60502-4, latest version. Mate with bushing Interface A. | |
Bom
– Deadbreak Straight Connector
– Test Point Cap
– Cable Lug
– (Copper or Aluminium)
– Copper Grounding Wire Hook
– Cleaning Tissue
– Silicone Lubricant
– Steel Installation Plate
– Installation Instruction Sheet(Optional)
