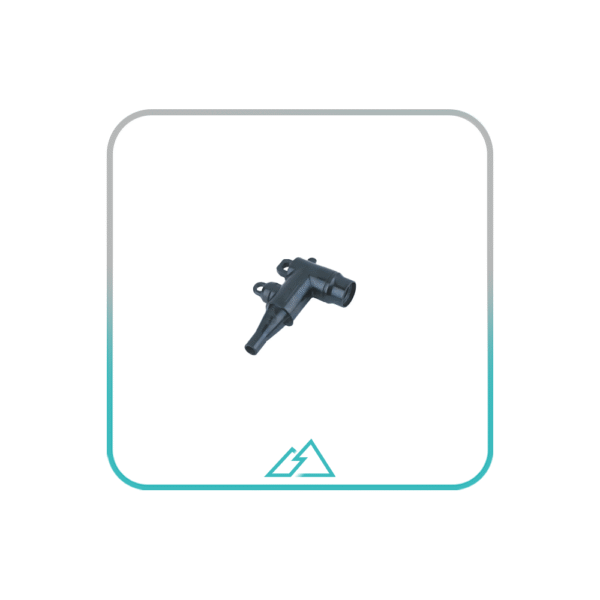

The 24kV 250A Deadbreak Elbow Connector is a fullyshielded and insulated plug-in termination, rated 250 amps, up to 24kV, connected with underground cable ranging from 25 to 120 mm²(conductor cross section).The Deadbreak Elbows are molded using high quality peroxide-cured EPDM insulation. It is used to connect underground cable to transformers, switchgear or RMU equipped with mated Deadbreak bushings.The test point is available for use with hot line voltage indicators.It is the essential component for high-voltage electrical connection of the padmounted transformers and RMU.
Order Information
| Description | Reference No. | Voltage Rating | Current Rating |
| UG DE-24/250-35 | 35 | 19.6-24.1 | F |
| UG DE-24/250-50 | 50 | 19.6-24.1 | F |
| UG DE-24/250-70 | 70 | 23.6-26.4 | H |
| UG DE-24/250-95 | 95 | 23.6-26.4 | H |
| UG DE-24/250-120 | 120 | 27.9-33.5 | J |
The cable range is the basic element for choosing the product’s type. The conductor size is just for a reference. The adapter code should be confirmed while ordering.
Electrical Characteristics
| Voltage Rating | 24kV |
| Maximum Rating Phase-to-ground | 12kV |
| AC 50Hz 5 Minute Withstand | 54kV |
| DC 15 Minute Withstand | 48kV |
| BIL Impulse Withstand Voltage | 125kV |
| Partial Discharge Voltage | 20kV (< 10pC) |
| Continuous Current | 250A |
| Short Time | 10kA rms sym. for 0.2s 35kA rms sym. for 3.0s |
| Meets IEC 60502-4, latest version. Mate with bushing Interface A. | |
Bom
– Deadbreak Elbow Connector
– Deadbreak Probe
– Test Point Cap
– Cable Lug (Copper or Aluminium)
– Copper Grounding Wire
– Spring – Cleaning Tissue
– Silicone Lubricant
– Steel Installation Plate
– Installation Tool
-Wrench(Optaional)
– Installation Instruction Sheet(Optional)
